PQL Ferromagnetic Wear Analyzer PQ200
Part Number:
PQ200
The PQ200 is a portable ferromagnetic particle analyzer engineered for fast, non-invasive measurement of ferrous wear contaminants in lubricating oils, greases, and hydraulic fluids. The unit offers a one-button operation with automatic data capture—taking measurements in mere seconds without requiring reagent use or sample prep. It supports monitoring machine health via a clear wear-intensity index, and integrates easily into onsite or maintenance-lab workflows.
Rapid Measurement
Delivers a quantitative ferrous wear index in seconds—ideal for quick field checks or routine lab diagnostics.
High Sensitivity
Detects ferromagnetic particles down to ~1 µm, providing early warning of abnormal wear before visible damage occurs.
Data Logging & Connectivity

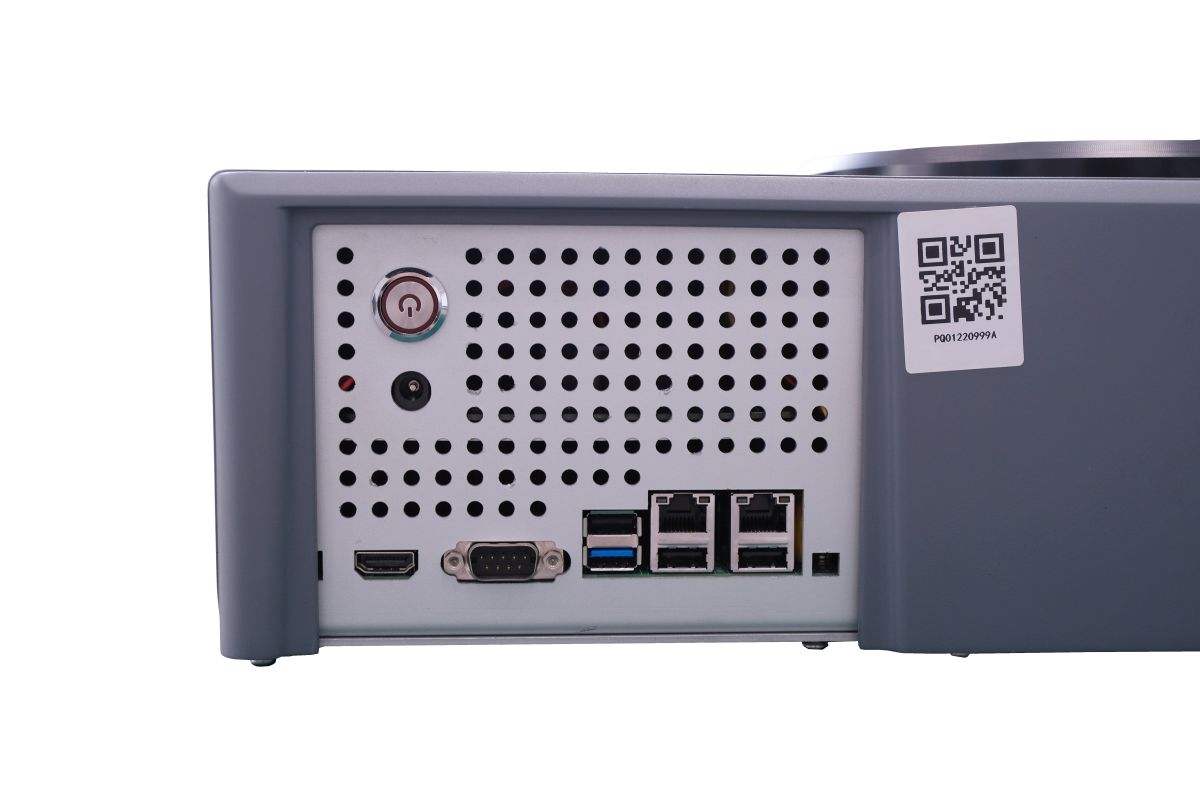

Stores test results with timestamp and sample ID, and features USB interface for data download and trend analysis (software optional).
Portable & Field-Ready
Compact and battery-powered, it's designed for on-site use in workshops, rigs, or mobile labs without needing external supplies.
User-Friendly Interface
Touchscreen display and minimal operational steps make it accessible for maintenance technicians and operators.
| Specification | Value |
|---|---|
| Measurement Speed | Seconds per test |
| Particle Detection Size | ≥1 µm ferromagnetic particles |
| Measurement Index | Ferrous wear intensity index (PQ units) |
| Operational Mode | Portable with rechargeable battery |
| Data Output | On-screen display, USB data export |
| Sample Requirement | Oil/grease/hydraulic fluid (volume not specified) |
| Housing | Rugged enclosure for field use |
