Iron meter PF100
Part Number:
PF100

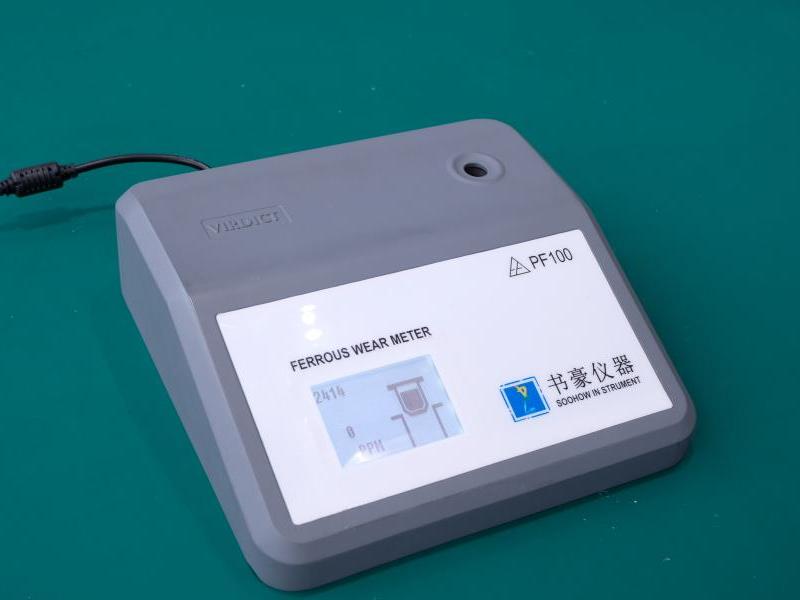

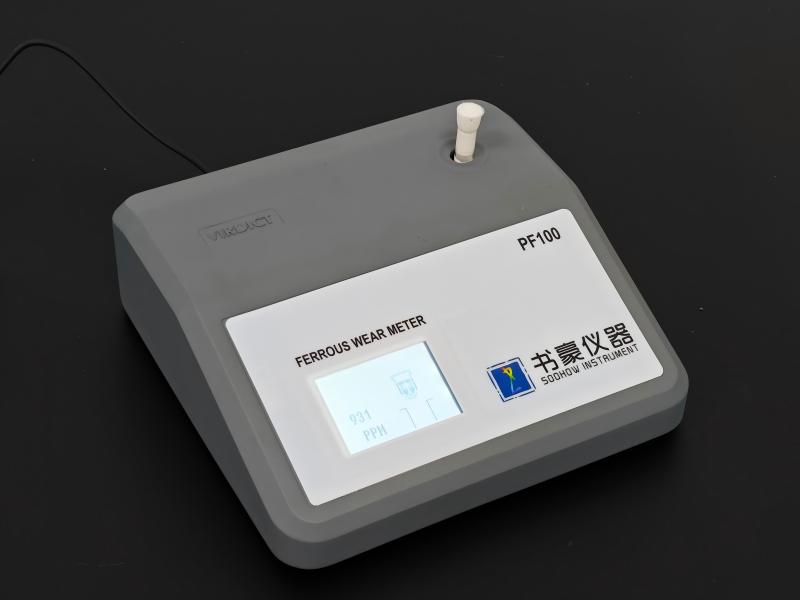

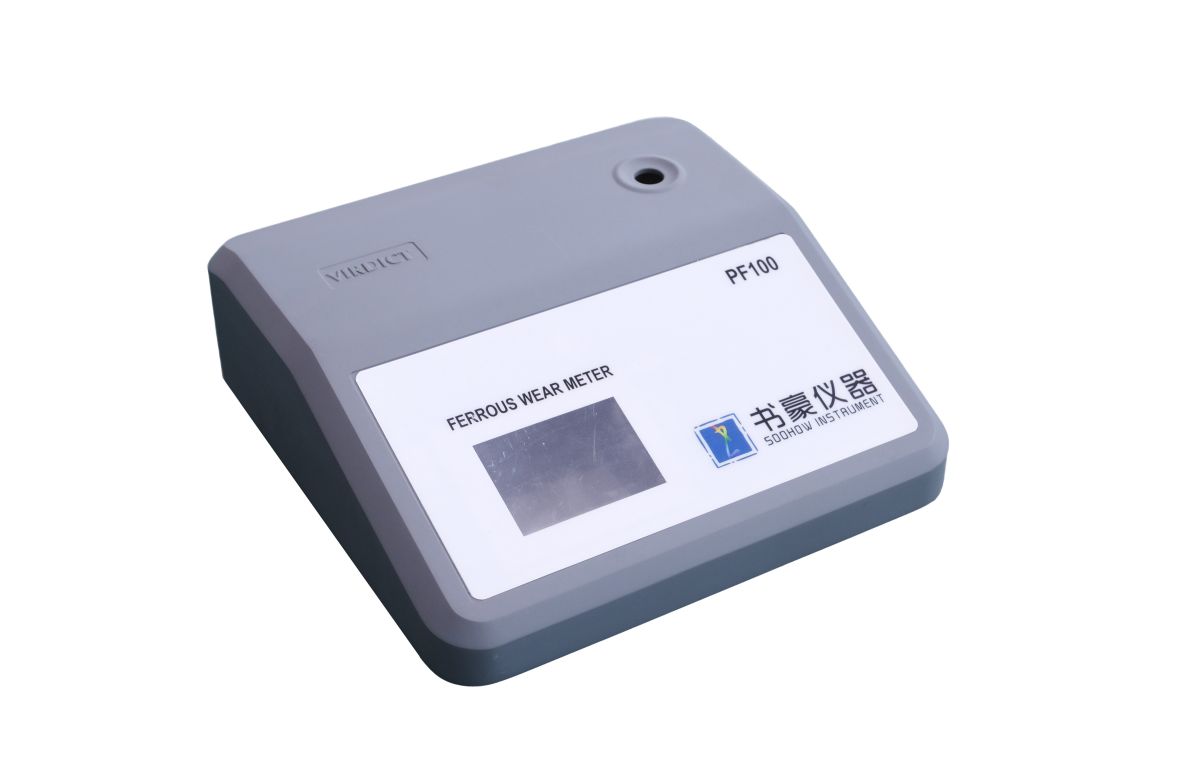

The PF100 is a portable ferromagnetic iron meter designed for quick, accurate detection of metal wear particles in lubricating oils, forestry fluids, and greases. It adheres to ASTM D8120 standards and provides a straightforward drop-in measurement by placing a 5 mL sample tube into the device—yielding results in under 3 seconds. Lightweight and battery-operated, it’s ideal for field teams, onboard ship engines, and maintenance environments requiring real-time insight into machine wear.
Ultra-Fast Readings

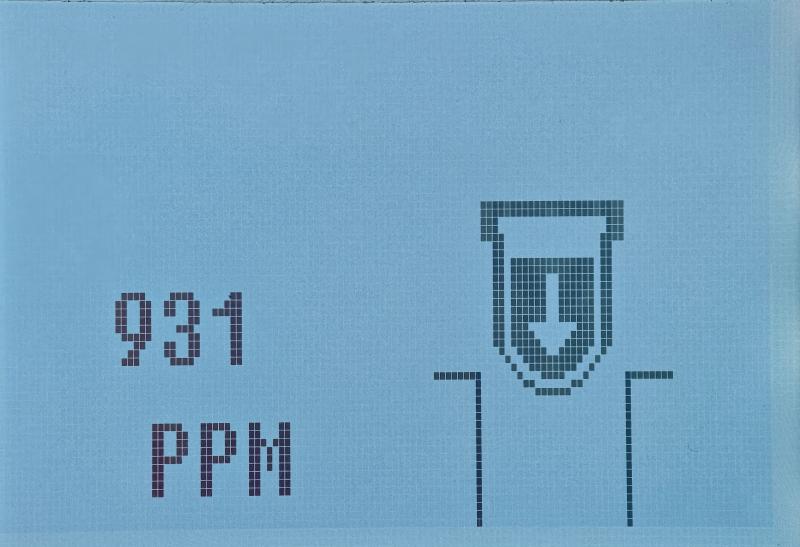

Delivers real-time iron concentration (0–2500 ppm) in less than 3 seconds.
Ferromagnetic Detection
Sensitively measures magnetic wear particles based on ASTM D8120 using magnetic induction.
High Resolution & Accuracy
Resolution of 5 ppm, with repeatability ±10 ppm (≤1000 ppm) and ±20 ppm (above 1000 ppm).
Rugged & Portable
Compact (220×220×75 mm), light (1.1 kg), and suitable for remote or onboard use.
Flexible Power Supply
Operates on 24 V DC with included UK/EU/US power adapters.
| Specification | Value |
|---|---|
| Measurement Range | 0 – 2500 ppm ferrous content |
| Sample Format | 5 mL test tube (user provides) |
| Test Time | < 3 seconds |
| Resolution | 5 ppm |
| Repeatability | ±10 ppm (≤1000 ppm); ±20 ppm (>1000 ppm) |
| Operating Temp & Humidity | 5 °C – 40 °C |
| Dimensions (L×W×H) | 220 × 220 × 75 mm |
| Weight | ~1.1 kg |
| Power Supply | 24 V DC (power adapters included) |
