Dual analysis ferrograph PA200
Part Number:
PA200

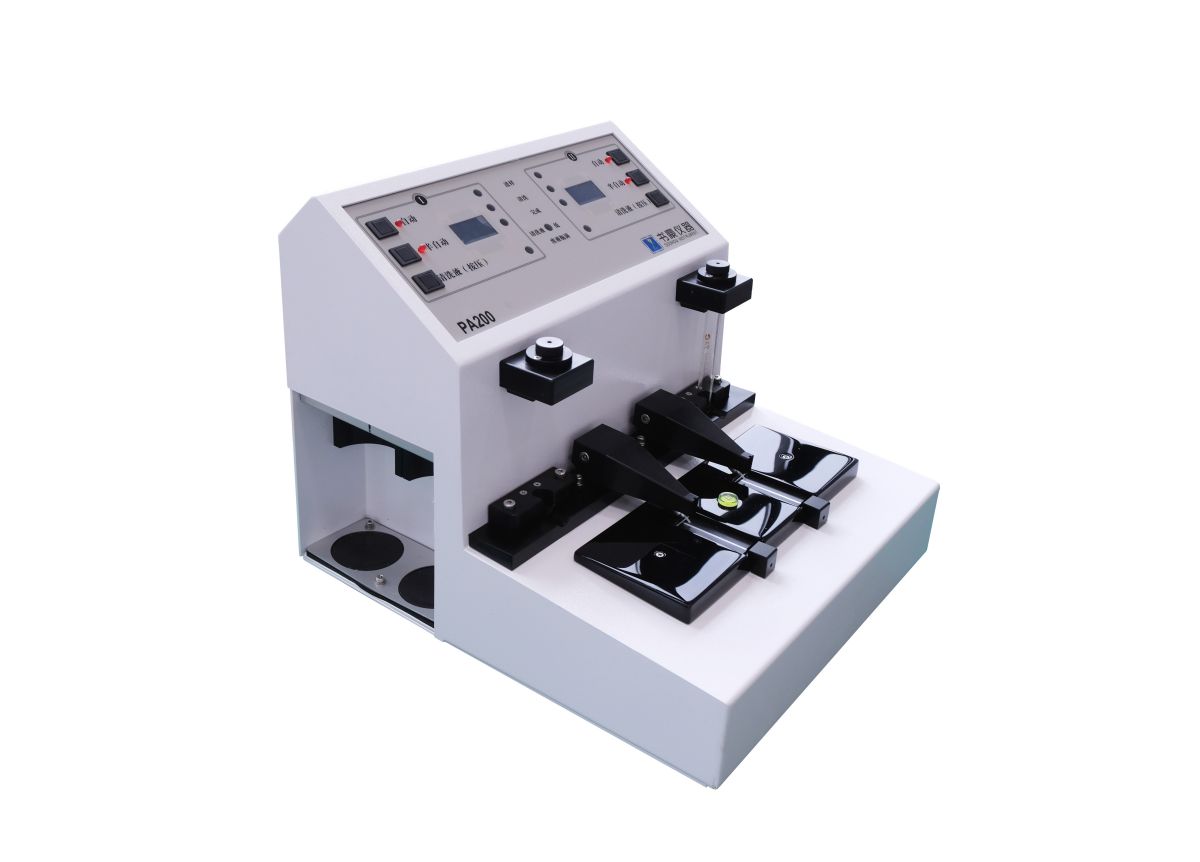

The PA200 is a dual-circuit bench-top ferrograph engineered for simultaneous qualitative and quantitative evaluation of wear particles in lubricating oils. It utilizes ferrographic technology to separate ferromagnetic wear debris by size and magnetism, depositing them cleanly on two independent slides. This efficient system supports both image-based inspection and numeric analysis, making it ideal for diagnostic labs, field service, and condition monitoring.
Dual Parallel Processing
Two independent circuits allow simultaneous preparation of two samples—ideal for comparative diagnostics or high-throughput workflows.
Powerful Magnetic Separation
Utilizes a high-gradient magnetic field (max ~1.8 T, >0.5 T/mm) to stratify wear particles based on size and magnetism.

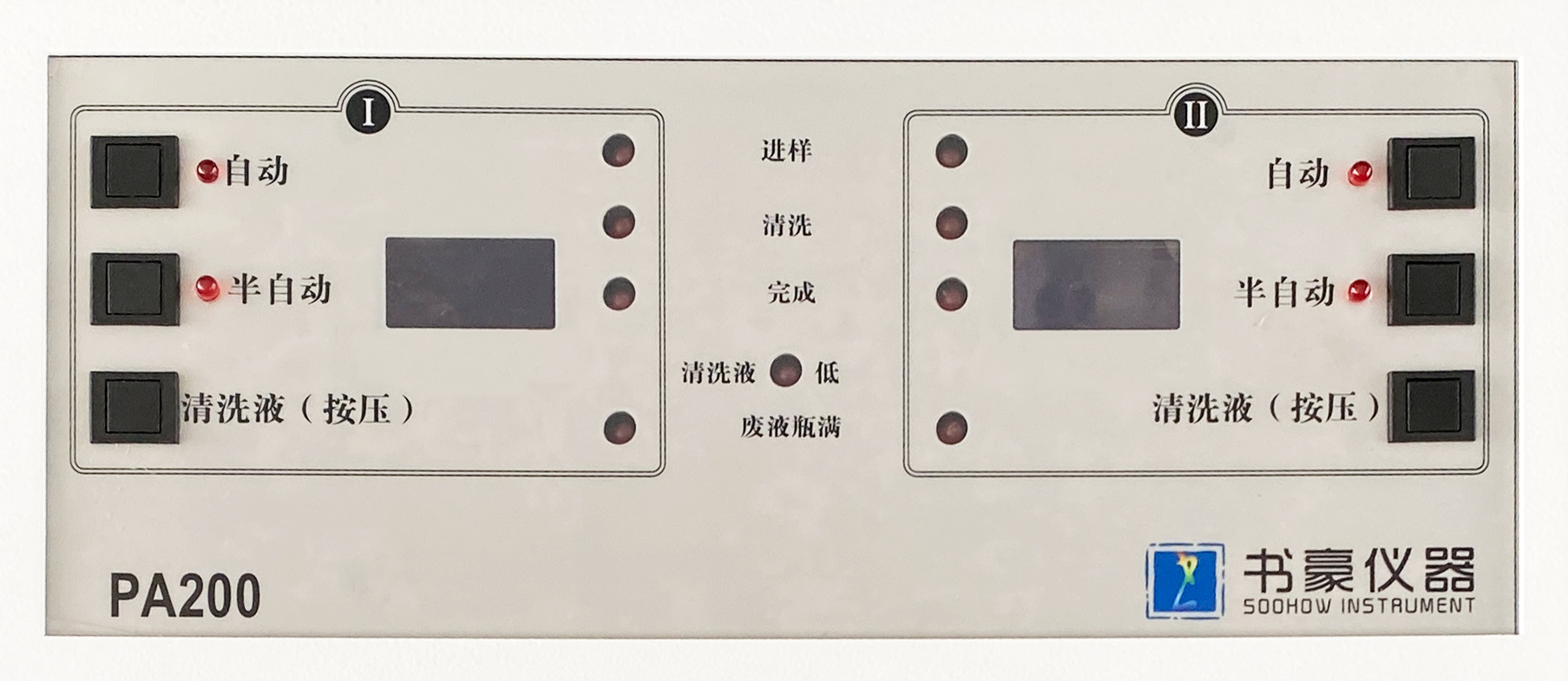

Automated to Manual Operation
Offers flexible control: fully automatic, semi-automatic, or manual sample processing and slide generation.
Quick Turnaround
Each run (per slide) completes in under 20 minutes, delivering both transparent ferrograms and quantitative output.
Low Sample Volume
Uses a precise oil flow of 10–30 mL/h, ensuring consistent deposition and repeatability.
| Specification | Value |
|---|---|
| Magnetic Flux Density | Up to ~1.8 T |
| Field Gradient | ≥ 0.5 T/mm |
| Field Gradient | 10–30 mL/h |

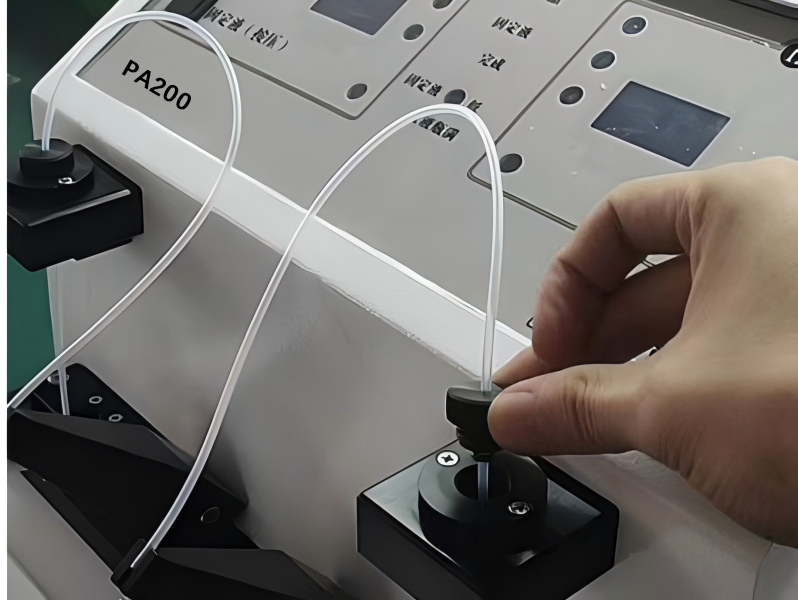

| Sample Tubing OD / ID | 2.3 mm / 1.7 mm |
| Slide Size | 60 × 24 × 0.12 mm |
| Dimensions | 395 × 355 × 330 mm |
| Operating Modes | Automatic, Semi-Automatic, Manual |
| Sample Slides | Two independent slide outputs |
