OCA – Optical contact angle measuring and contour analysis systems

Part Number: OCA

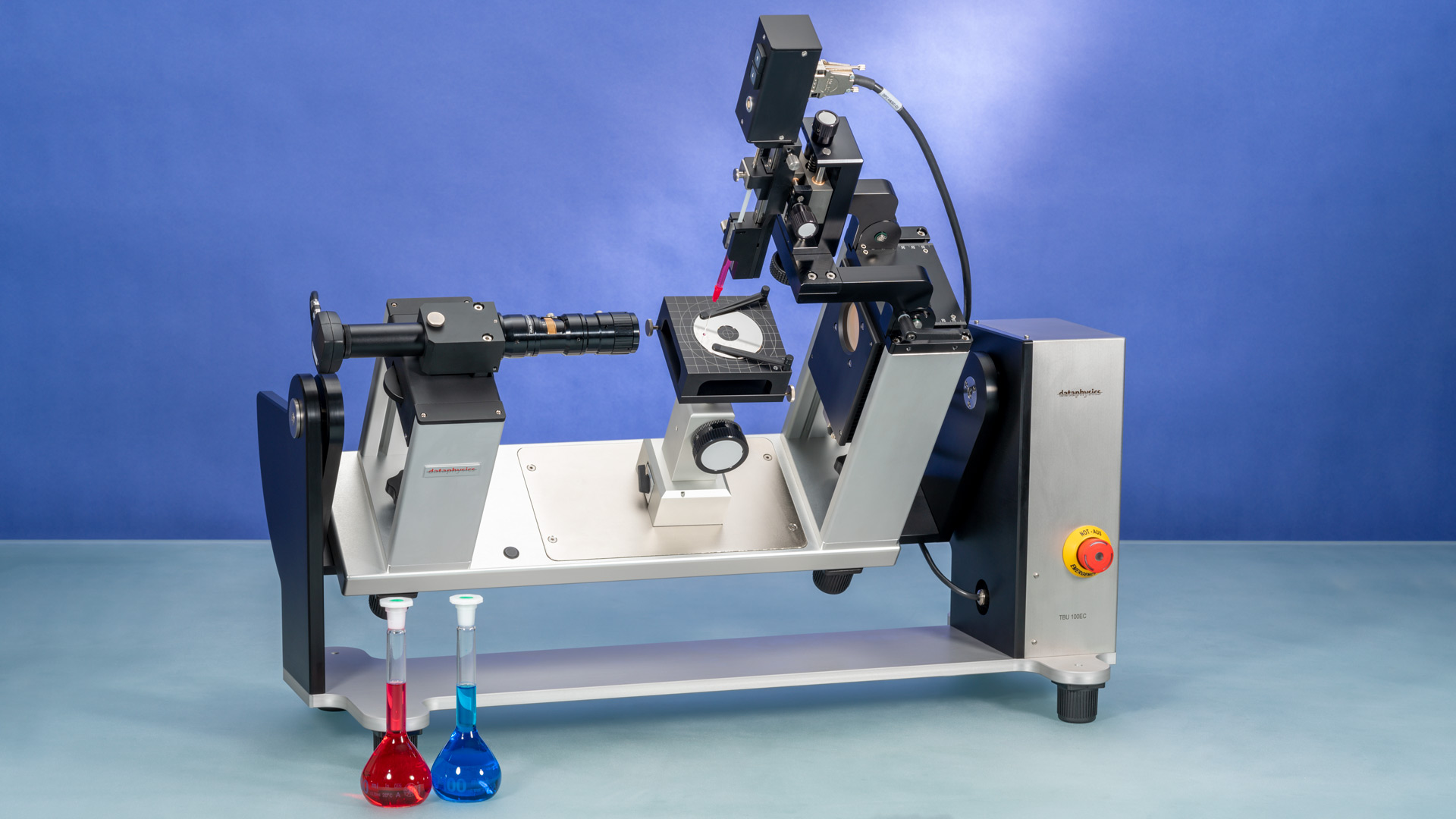

The OCA Series by DataPhysics comprises high-precision optical contact angle goniometers and drop-shape analyzers. These instruments determine surface and interfacial properties—such as static/dynamic contact angles, surface energy, interfacial tension, and work of adhesion—through advanced imaging and dosing technologies. With modular designs that support lab-scale research or field applications, the OCA lineup offers reliable performance across industries like materials science, coatings, bioengineering, and quality control 


                                                    High‑Resolution Optics & Sharp Imaging

                                                Equipped with a 6.5‑fold (OCA 15/25) to 10‑fold (OCA 200) zoom lens combined with USB 3 cameras, enabling capture of crisp drop images and full kinetic analyses with up to 4,276 fps for dynamic wetting studies


                                                    Precise Liquid Dosing with Flexibility

                                                Supports manual single/double dosing or full electronic systems like SD‑DM, DD‑DM, DDE/x, and even nanoliter/picoliter syringe modules, ensuring extremely accurate sample deposition for surfaces ranging from large wafers to microstructures


                                                    Versatile Modular & Adjustable Setup

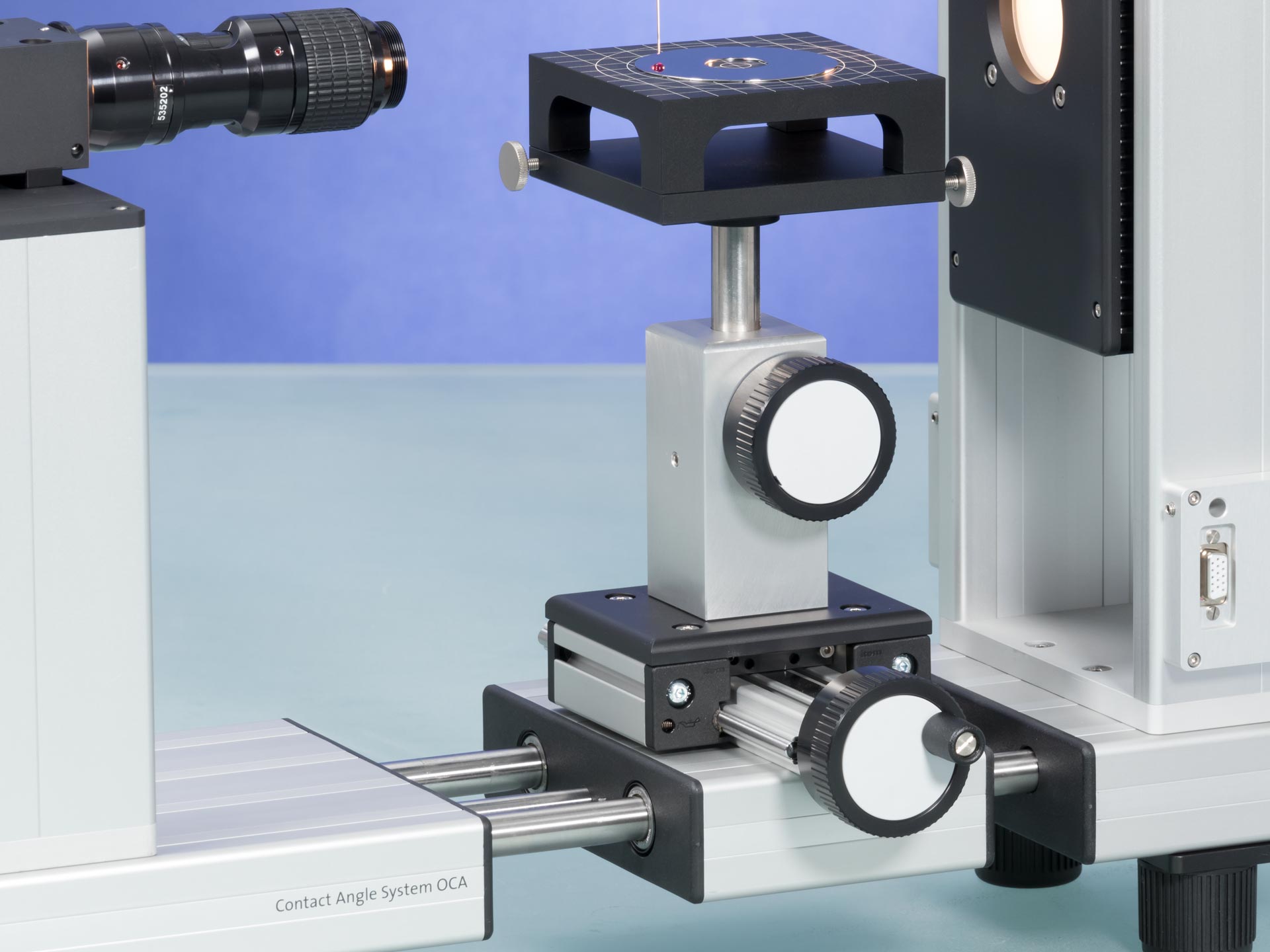

                                                Sample stages are adjustable across X–Y–Z axes, with options for magnetic slides (15EC) or full motorized control (OCA 25/50/200), including tilt-base, vacuum chucks, temperature chambers, and wafer mapping systems


                                                    Fully Automated Measurement & Mapping

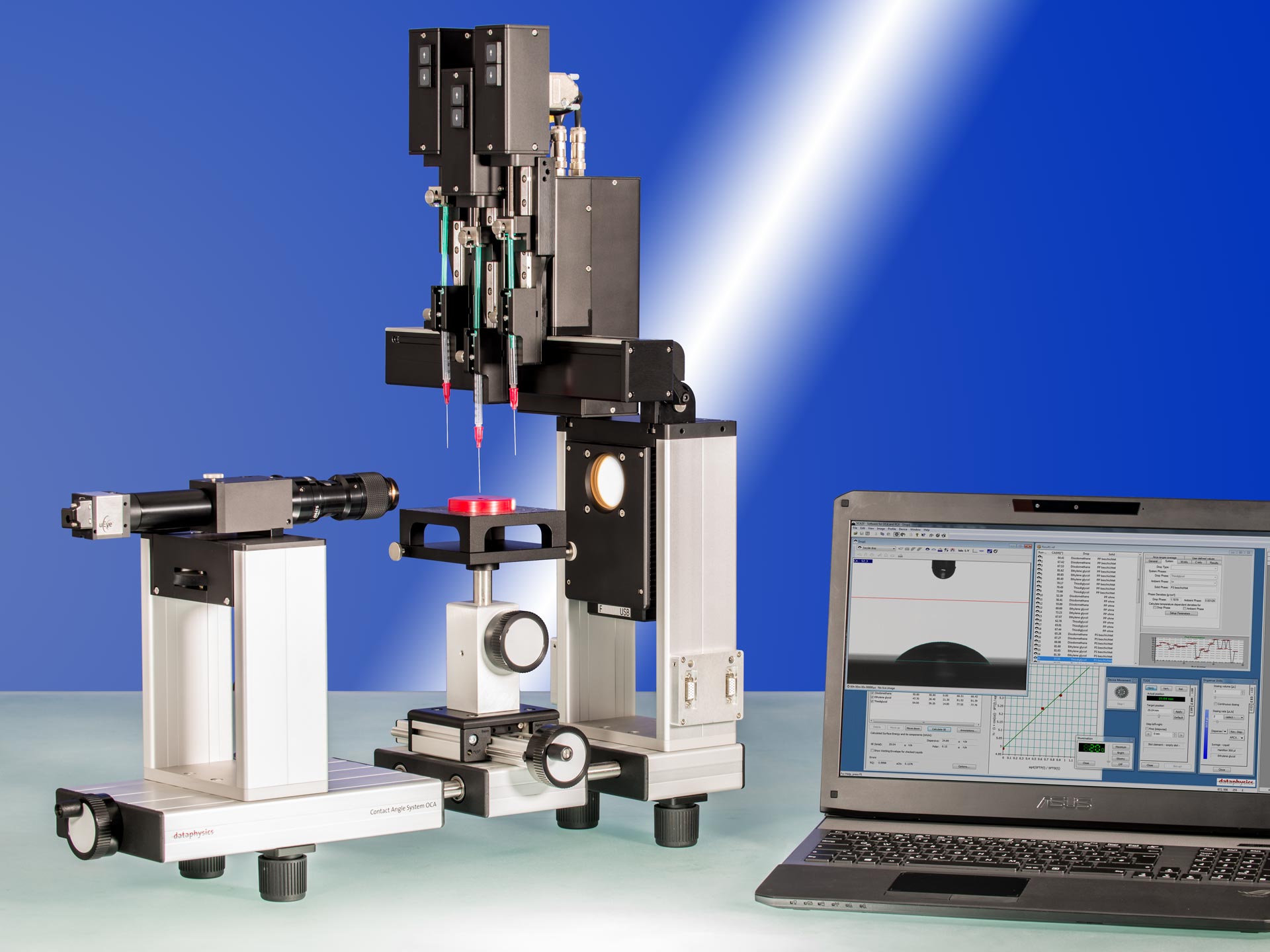

                                                Advanced software enables automated drop placement, optic alignment, focus, and full surface energy/mapping routines with multi-drop protocols and environmental control—ideal for repeatable, high-throughput analyses


                                                    Adaptable to Harsh & Narrow Conditions

                                                Specialized models reach extremes—from -30 °C to 1800 °C under vacuum/controlled gas (e.g., OCA 25‑HTV 1800)—while maintaining imaging quality and focus


                                                    Integrated Control via Touch‑Panel or Software

                                                All models feature USB 3 cameras, LED lighting with drift compensation, and software‑controlled systems. OCA 50/200 include TP 50 touchscreen panels and toolkits like OCA software (SCA 20 module) for precise analysis

Specification	Value
Technology	Optical Contact Angle and Drop Shape Analysis
Optical Zoom	6.5× (OCA 15/25/50), 10× (OCA 200)
Focus Control	Manual (OCA 15/25), Motorized Autofocus (OCA 200)
Camera Type	USB 3.0 High-Speed Camera
Frame Rate	Up to 4,276 fps (OCA 25/200)
Spectral Lighting Range	LED illumination with drift compensation
Sample Stage Movement	Manual (OCA 15/25), Motorized X/Y/Z (OCA 50/200)
Stage Tilt Option	Available for OCA 50 & OCA 200
Dosing Systems Supported	SD‑DM, DD‑DM, DDE/x, ESr-N, Nanoliter/Picoliter syringes
Sample Types	Solids, wafers, films, microstructured surfaces
Measurement Types	Static & dynamic contact angle, surface/interfacial tension, SFE
Temperature Control Options	Environmental chambers, heating/cooling stages (up to 1800 °C available)
Software	SCA 20 analysis suite with automation support
Touch Panel Integration	Available on OCA 50 and OCA 200
Applications	Surface science, coatings, biomaterials, microfluidics, electronics
