Oil spectrometer PO200
Part Number:
PO200

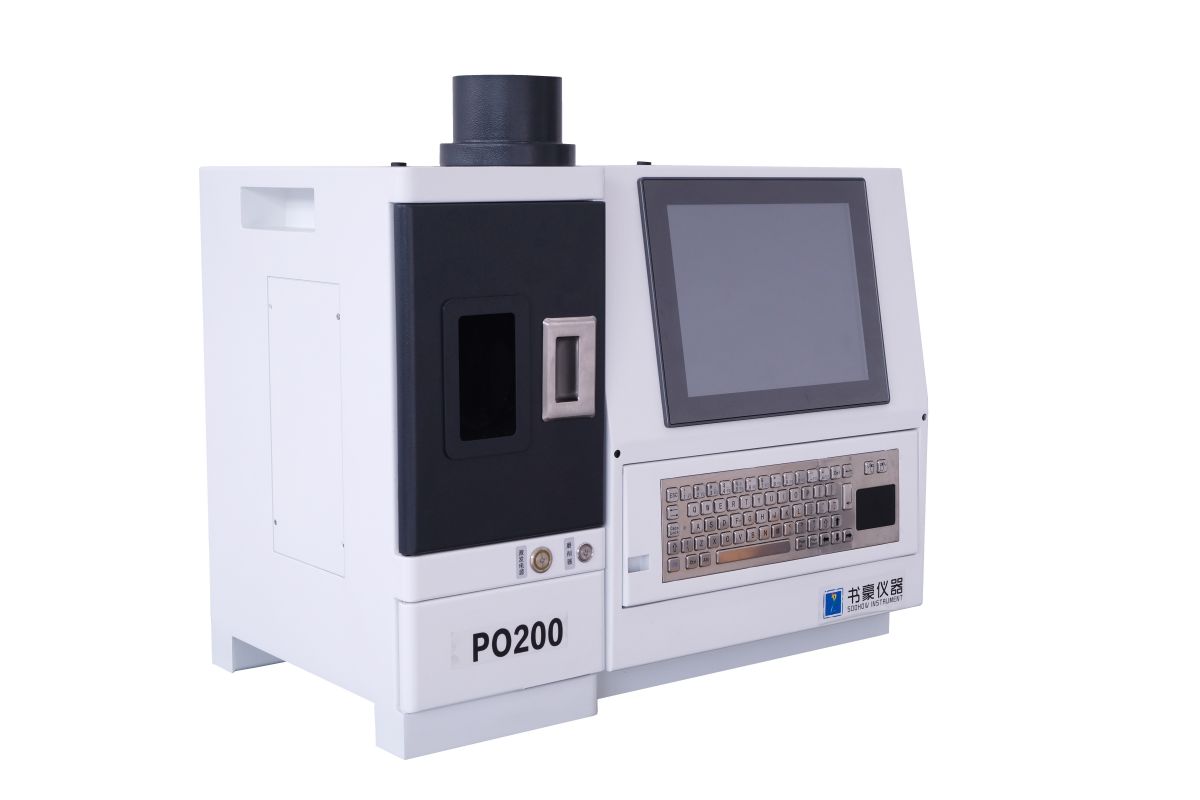

The PO200 is a Rotating Disc Electrode (RDE) Optical Emission Spectrometer tailored for rapid and direct elemental analysis of lubricating and hydraulic oils. It follows industry standards—ASTM D6595, ASTM D6728, NB/SH/T0865-2013, and HB20094.1-2012—allowing direct testing from sample cups in about 30–35 seconds without dilution or carrier gases
Rapid Testing (~30 s)
Delivers full multi-element oil analysis in approximately half a minute .
Wide Element Coverage
Standard detection for 24 elements (Al, Ba, B, Ca, Cd, Cr, Cu, Pb, Mg, Mn, Mo, Ni, P, Si, Ag, Na, Sn, Ti, V, Zn, Fe, K, Li, Sb), expandable to 32 .
Robust Optical System
Features Paschen–Runge optics with Rowland circle and 500 mm focal length, dual-optics and fiber inputs for stable light detection .
High Precision & Sensitivity
Equipped with a high-resolution CCD (3648 pixels/channel) and constant-temperature optics (38 °C ± 0.1 °C), achieving detection limits of < 1 ppm .
Easy to Operate
The system includes built-in CCD control, automatic electrode grinder, USB export, integrated printer, exhaust to prevent contamination, and Windows-based control software .
| Specification | Value |
|---|---|
| Analysis Time | ~30–35 seconds per run |
| Spectral Range | 200–800 nm |
| Optics | Paschen–Runge + Rowland-circle, 500 mm focal length |
| Detector | CCD, 3648 pixels/channel |
| Elements Analyzed | 24 standard, up to 32 optional |
| Detection Limit | < 1 ppm |
| Temperature Control | Optics at 38 °C ± 0.1 °C |
| Power Supply | AC 220 V ±10%, 50–60 Hz, 10 A, approx. 1.5 kVA |
| Dimensions | 660 × 360 × 520 mm |
| Weight | ~64 kg |
