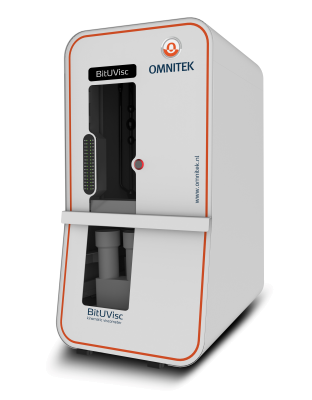

BitUVisc kinematic viscometer

Part Number: BitUVisc

A fully automated kinematic viscometer designed for high-viscosity fluids such as heavy fuel oils, asphalts, waxes, polymers, and crude residues. Engineered to handle viscosities up to 120,000 mm²/s at temperatures reaching 150 °C, it adheres to ASTM D445, D446, D2170, and AASHTO T201 standards .
Features include automated sample heating, auto-sampling with vacuum or pressure, dual solvent cleaning, and duplo viscometer tubes for replicate reliability .


                                                    Extreme Viscosity & Temperature Handling

                                                Measures up to 120,000 mm²/s and temperatures up to 150 °C, with pre‑heater up to 200 °C .


                                                    Precise Temperature Control

                                                Maintains ±0.01 °C up to 100 °C, and ±0.03 °C up to 150 °C .


                                                    Fully Automated Workflow

                                                Integrated auto-sampling, heating, cleaning, and drying—all without manual interventions .


                                                    Duplo Tube Design

                                                Two measuring sections in one tube allow replicate results from a single sample .


                                                     Compliant & Versatile Standards

                                                Meets ASTM D445/D446/D2170, AASHTO T201, EN 12595, ISO, DIN, and more .

Specification	Value
Viscosity Range	Up to 120,000 mm²/s
Temperature Range	15–150 °C (preheat to 200 °C)
Temperature Stability	±0.01 °C (≤100 °C), ±0.03 °C (up to 150 °C)
Timer Resolution	0.001 s
Sample Volume	~12 mL
Sample Introduction	Vacuum (prevents evaporation)
Solvent Consumption	10–30 mL/cycle (sample-dependent)
Throughput	110: up to 2 tests/hr • 120: up to 4 tests/hr omnitek.nl+13omnitek.nl+13environmental-expert.com+13
Standards Compliance	ASTM D445/D446/D2170, AASHTO T201, EN 12595, ISO, DIN
Viscometer Type	Ubbelohde-based with thermal sensors
Duplo Measurement	Yes (single sample, two readings)
Cleaning	Automatic dual-solvent + drying
Communication & Control	RS-232C, USB export, PC control
Dimensions (W×D×H)	38 × 62 × 78 cm
Weight	~54 kg
Power Requirement	10 A @ 230 V
