SpectrOil 120 Series - (RDE-OES) Elemental Analyzer

SpectrOil 100 Series - (RDE-OES) Elemental Analyzer Label

SpectrOil 100 Series is a precision benchtop RDE-OES elemental analyzer for lubricants, fuel, coolants and water.

SpectrOil 100 Series - Elemental Spectrometer for Oil Analysis

Features

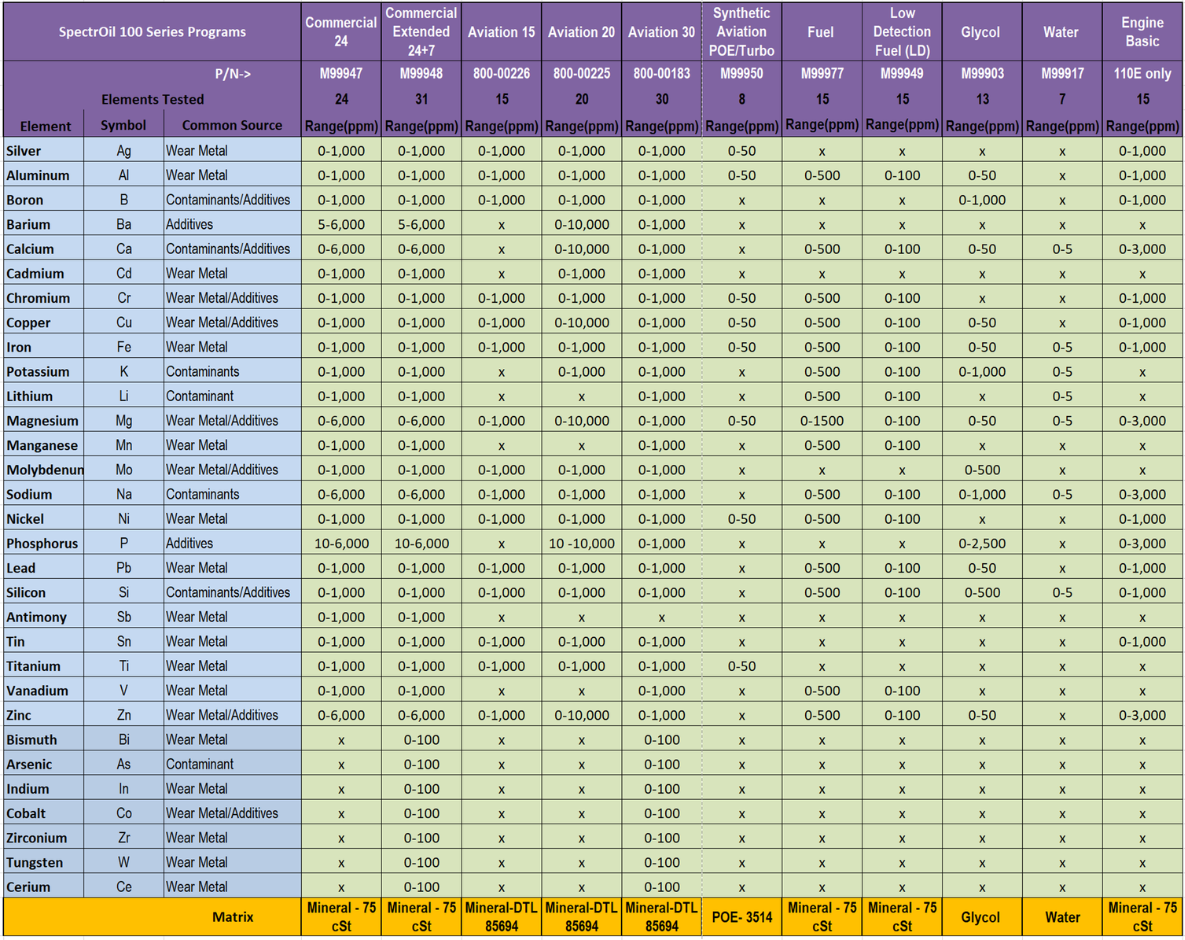

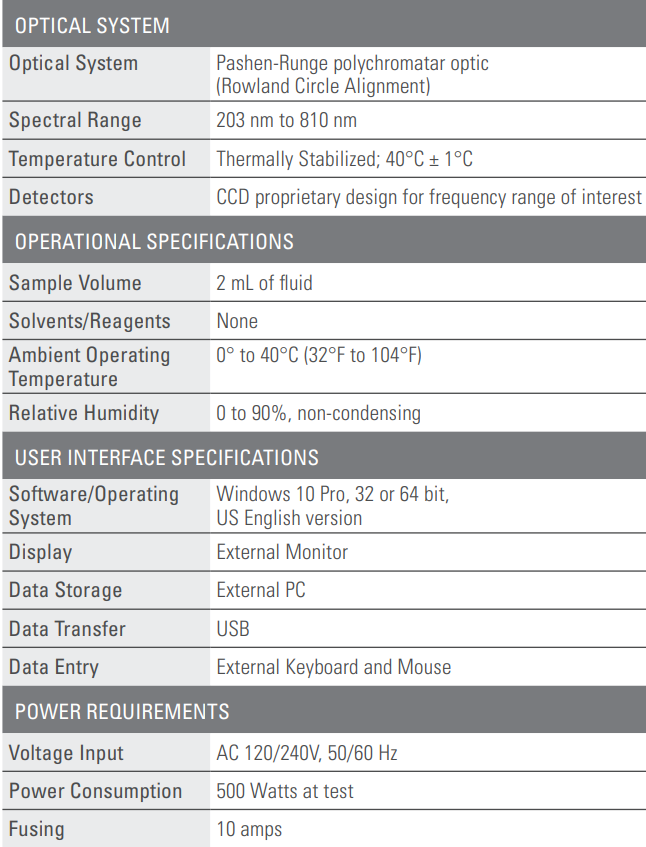

Specifications
Application
Acessories

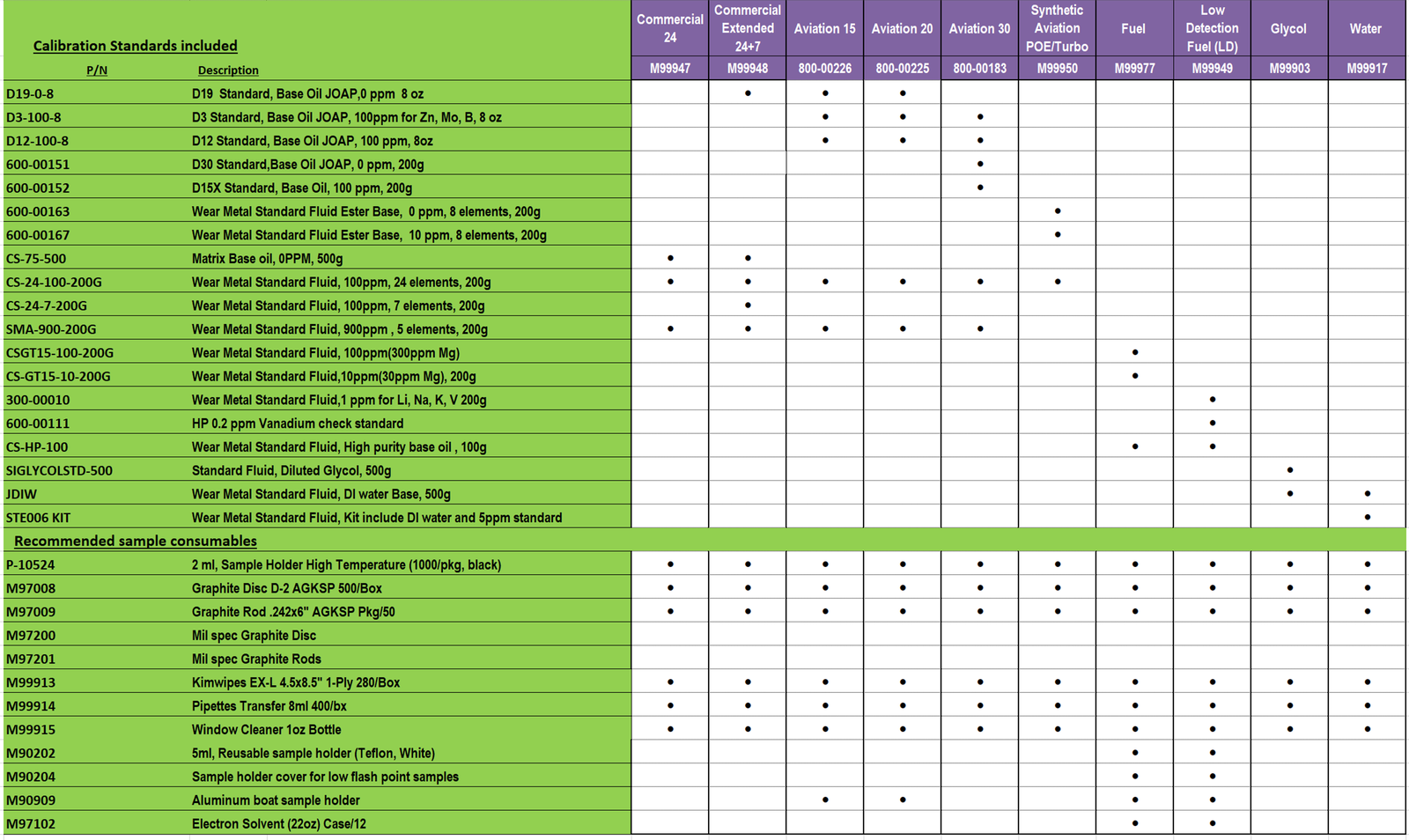

Consumables
Download
Ordering

Highlights

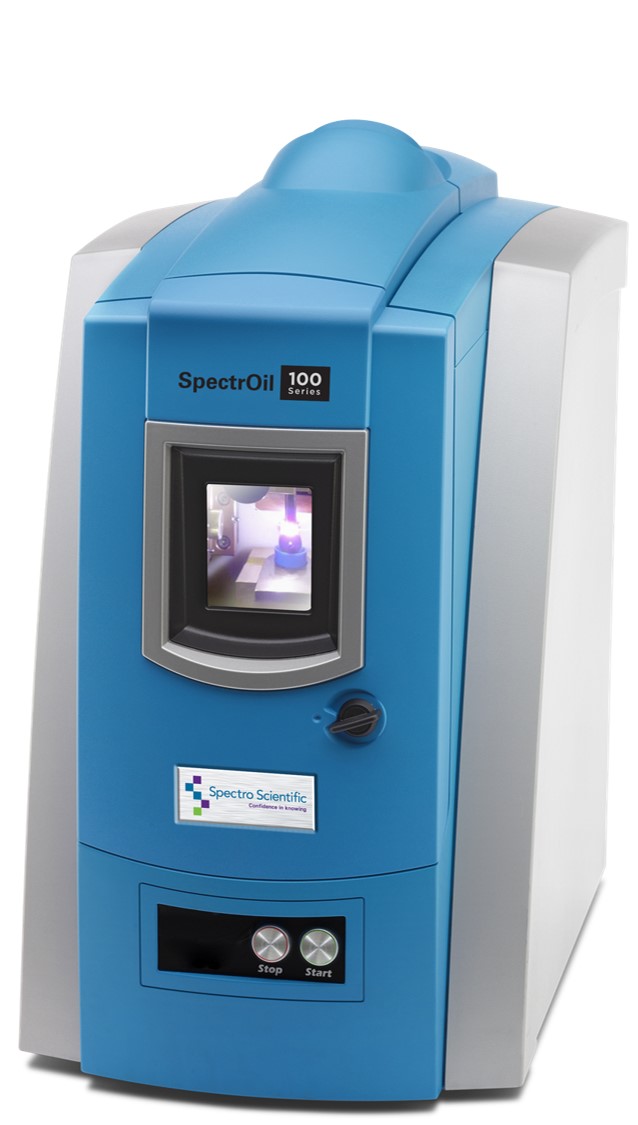

The SpectrOil 100 Rotating Disc Electrode Optical Emission Spectrometer (RDE-OES) is a reliable and precise means of determining elemental composition in various fluids, including lubricating oil, coolant, light or heavy fuels, grease, and process water. It is widely used in commercial oil laboratories, on-site or trailer labs, and supports the Joint Oil Analysis Program (JOAP) calibration with results that correlate to those from the SpectrOil MNW, the only approved spectrometer for elemental analysis of lubricating oil for US and NATO military use.

The SpectrOil RDE-OES consists of three main components: an Excitation Source, an Optical System, and a Readout System. It uses a specific calibration program to eliminate the matrix effect, which enables switching from oil to fuel to coolant or water in just seconds.

Provides precise and reliable results
Simultaneous multi-element analysis
Repeatable and sensitive fluid characterization
Conforms to ASTM-D6595 (oil), and ASTM-D6728 (fuel)
Fast and easy to operate
No sample preparation required
No solvents or gasses required
Quick 30-second analysis time
Minimal training/background required to operate
Immediate results on-site
Analysis at your facility
Bench-top, transportable system
Low cost per sample

Summary: The SpectrOil 100 Rotating Disc Electrode Optical Emission Spectrometer (RDE-OES) is a precise and reliable means of determining elemental composition in various fluids. It is widely used in commercial oil laboratories and on-site or trailer labs, and supports the Joint Oil Analysis Program (JOAP) calibration. The SpectrOil RDE-OES consists of an Excitation Source, an Optical System, and a Readout System, and uses a specific calibration program to eliminate the matrix effect, enabling quick switching from oil to fuel to coolant or water. It provides simultaneous multi-element analysis, repeatable and sensitive fluid characterization, and conforms to ASTM-D6595 (oil) and ASTM-D6728 (fuel). The SpectrOil RDE-OES is fast and easy to operate, with no sample preparation required, no solvents or gases required, and quick 30-second analysis time. It provides immediate results on-site, analysis at your facility, is a bench-top, transportable system, and has a low cost per sample.

Applications

The SpectrOil 100 Rotating Disc Electrode Optical Emission Spectrometer (RDE-OES) is widely used in various applications:

Oil & Grease Condition Monitoring

Detecting and quantifying elemental wear in lubricants enables a rapid, non-invasive determination of machine condition, while monitoring for additive depletion ensures that lubricating fluids continue to protect critical assets according to ASTM-D6595.

WEAR: Quantify elemental composition of wear debris to determine the location and severity of component wear.
CONTAMINATION: Detect unexpected elements to indicate fouled air filters, coolant leaks, sea water ingress, or dirt ingestion.
CHEMISTRY: Measure additive package depletion to ensure expected oil protection.

Fuel & Lubricant Quality Control

SpectrOil is used to ensure composition and quality of petrochemicals from crude through the final blended product to ensure that processing is acceptable and to protect finished fuel against trace contamination through handling, storage, and to the user in accordance with ASTM D-6728.

Coolant Condition Measurements

Analyzing in-service coolant is a quick and accurate means of ensuring that it continues to provide the required corrosion protection and heat transfer.

Process Water Condition Analysis

Measuring contamination in a variety of applications like power plant cooling water and turbine wash water provides unique system condition insights and ensures compliant disposal or reuse.
