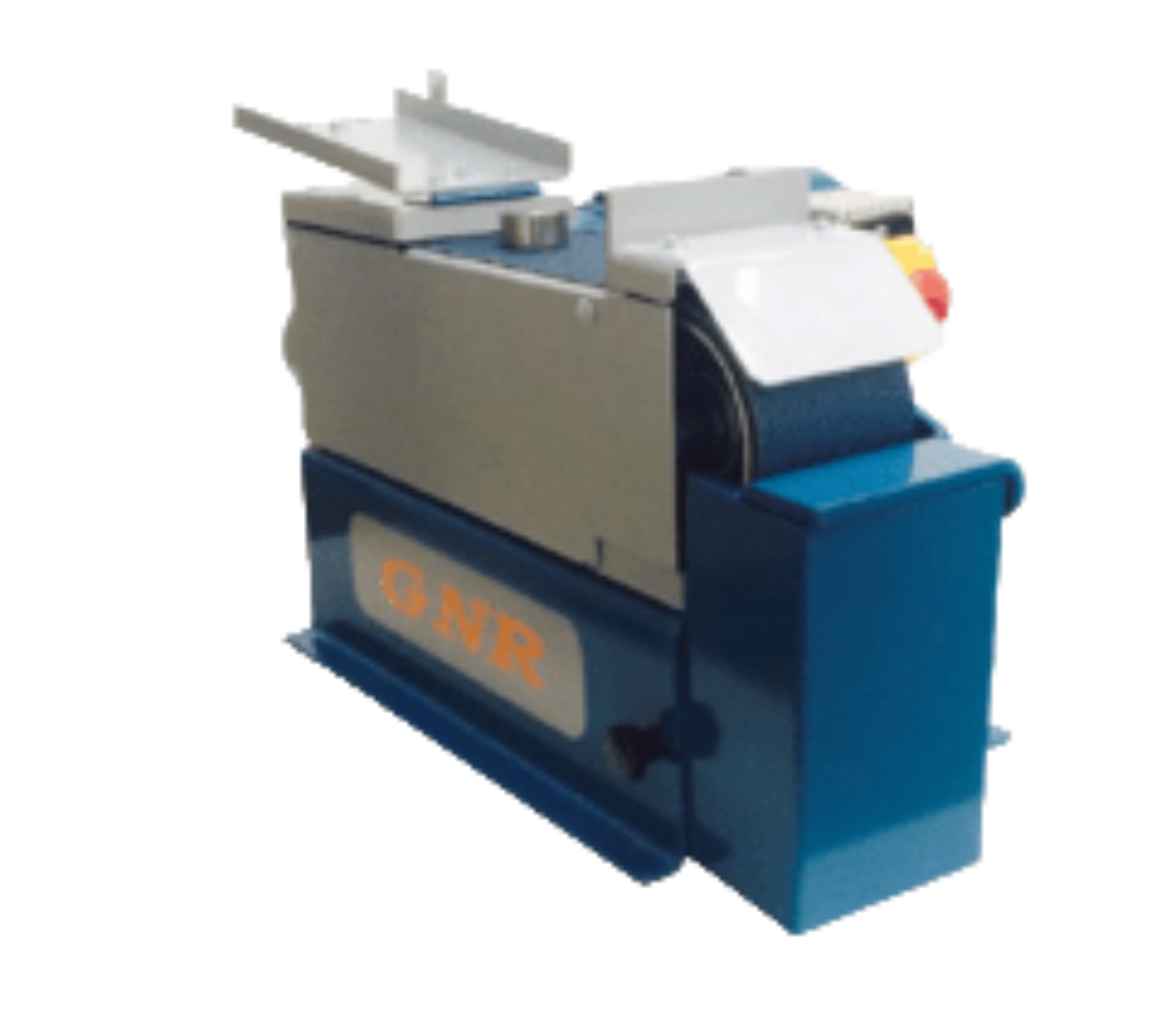

New belt grinding machine for fast preparation of sample surface equipped with:
- N° 1 grinding belt cm 100 x 10
- N° 1 motor 2800 rpm
Dimensions and Weight: W 60 x D 40 x H 30 cm / 38 Kg
The machines are equipped with a dust extraction system, a new automatic tool for preparing mineral samples. It represents an ideal solution not only for those with a large number of samples but also for the safety of the operator who can carry out the operation with completely free hands without contact with the work area.
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
LP 200 - Automatic Grinder for Metallographic Samples
Introduction
The most commonly used methods to analyze a solid state metal material are optical emission spectrometers and, in some cases, X-Ray Fluorescence.
Preparation of specimes must be performed in a correct manner, quickly and with the maximum security for the operator. The specimens must be homogeneous and representative, must have a flat and grinded surface with different finishing grades depending on the material in order to minimize the factors that may affect the results especially for the trace elements.
Technical Data
-
Power Supply: 380 /400 Vac, 3f + T, 50/60 Hz
-
Air Pressure Inlet: 4.0 bar
-
Max Power: 4.3 Kw
-
Minimum working pressure: 1.8 bar
-
Dimensions: cm 125x63x136
-
Weight: 252 Kg
-
Abrasive belt: cm 20x175 cm Red Ceramic
- Maximum sample size in automatic: 12
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Electrogrinding Machine DS 1100
Premium Features
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur imperdiet hendrerit volutpat. Sed in nunc nec ligula consectetur mollis in vel justo. Vestibulum ante ipsum primis in faucibus orci.
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ

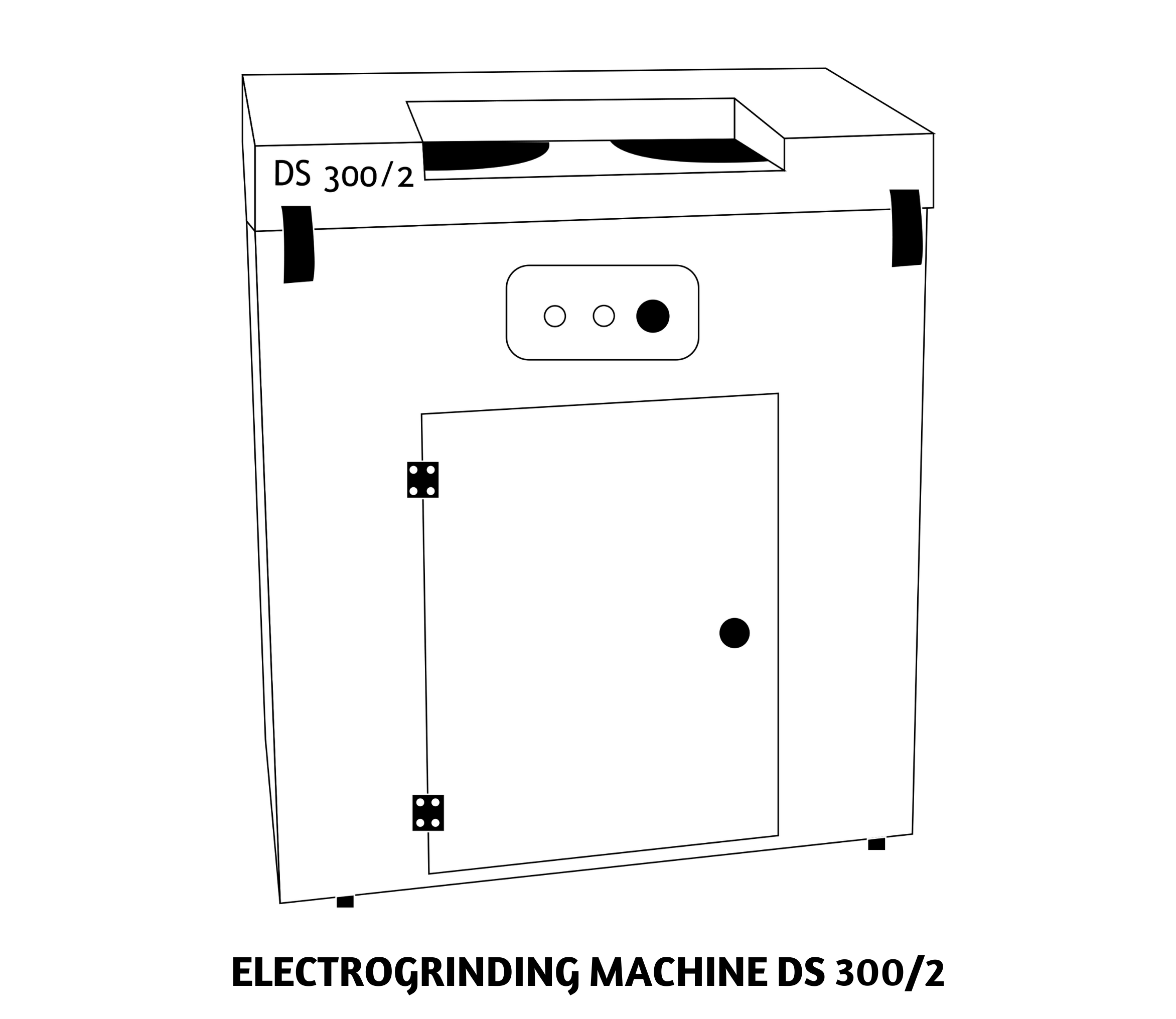

Electrogrinding Machine DS 300/2
Premium Features
GNR produce Electrogrinding Machine for preparation of spectrometer samples surface.
DS 300/2 is equipped with:
N° 2 separate discs 300 mm suitable to prevent pollution in case of cleaning surfaces of different alloys
N° 2 self braking motors (1500 rpm) operating separately
Vacuum Cleaner
Dimension and Weight: W 42 x D 76 x 92 H cm / 110 Kg
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Lapping Machine LP 3000
Premium Features
LP 3000 Polishing machine for preparation of Ferrous and Non Ferrous spectrometric samples.
It is supplied with proper lapping tool accordingly to the alloy of the sample to be prepared (Aluminium, Copper, Cast Iron)
LP 3000 basic configuration comes with
- N° 1 Self braking mono-phase motor 1500 rpm
- N° 1 Sample Holder
LP 3000 could mount:
- Cutting Tool system for Non Ferrous Samples
- Grinding Stone for Cast Iron Samples
The Unit could have different sample's holder:
- Basic Sample Holder for different shape
- Mandrel for round sample
- Magnetic sample holder
Furthemore is possible to use the LP 3000 together with a complete stand with a dust exhauster.
Dimension and Weight: W 52,5 x D 50 x H 73 cm / 55 Kg
