The Aquamax KF Plus titrators have been specifically designed for the determination of water content, combining coulometry with the Karl Fischer method.
The Aquamax KF Plus titrators are conform to standards for water determination: DIN 51777, ASTM D 1364, ASTM D 1533, ASTM D 4377, ASTM E 203, IP 356, IP 471, ISO 10336, ISO 6296.

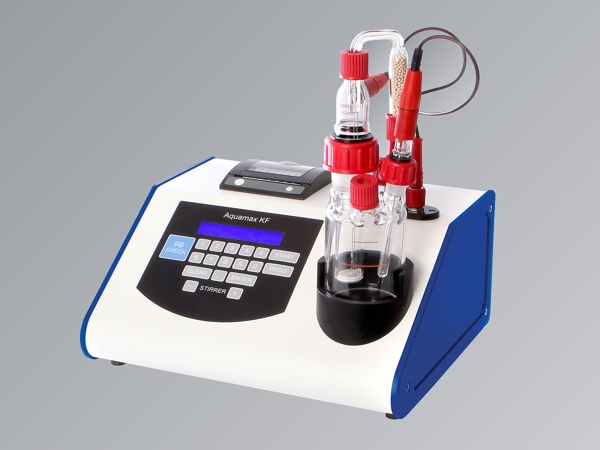

The Aquamax KF Plus is a truly versatile coulometric Karl Fischer Titrator featuring a robust measuring vessel design and ‘press go’ key pad.
The device is used to determine trace level water contents in a liquid sample.
The Aquamax KF Plus is suitable for a wide range of applications with sample dosing directly into measuring cell.
Easy to use – simple to programme so that only a single button needs to be pressed for a titration, everything else is automatic.
Titration method: Coulometric Karl Fischer titration
Electrolysis Control: Patented “ACE” control system GB2370641
Sample administration: Manually with syringe
Sample amount: 0.01 - 10 mL
Measuring range: Possible 1 µg - 200 mg water
Typical 1 µg - 10 mg water
Moisture range: 1 ppm - 100 % water
Max. sensitivity: 0.1 µg
Drift compensation: Automatically controlled
Precision: 10 - 100 µg ± 3 µg; 100 µg - 1 mg ± 3 µg; above 1 mg ± 0.3 %
Data Entry: 15 key touchpad
Power supply: 18 V DC, 40 W
Display format: µg, mg/kg, ppm, %
Hydrocarbons Lubricating oils Motor oils Hydraulic oils Insulating oils
Transformer oils Mineral oils Crude oils Petroleum products Fuels
Bunker fuels aquamax KF Plus Jet fuels Diesel Bio fuels Ionic liquids
Organic liquids Solvents
Optional Extras
Part No. Product
309.18.0001 Results Manager Software Package
303.18.0003 Aquamax KF Reagent Kit
321.18.0001 Power Adaptor
332.18.0002 Titration Vessel LDC
332.18.0003 Detector Electrode LDC
332.18.0004 Generator Electrode & Frit LDC
321.18.0002 Electrode Lead (single)
332.18.0006 Desiccant Tube LDC + Cap
325.18.0002 Pack Injection Septa (10 pcs./pkg.)
332.18.0010 1.0 Microlitre Water Check Syringe
332.18.0007 Gas Tight 0.25 mL Syringe
332.18.0008 Gas Tight 1.0 mL Syringe
303.18.0001 Molecular Sieve
325.18.0004 Stirrer Bar
301.18.0002 Thermal Paper Rolls (20 pcs./pkg.)
325.18.0016 Luer Needle 19 Gauge (Screw Fit)
330.18.0001 Carry Case
Reagent
Resources & Downloads
Data sheet Aquamax KF Portable
ordering information
Dimensions
290 x 255 x 130 mm
Weight:
3.0 kg
